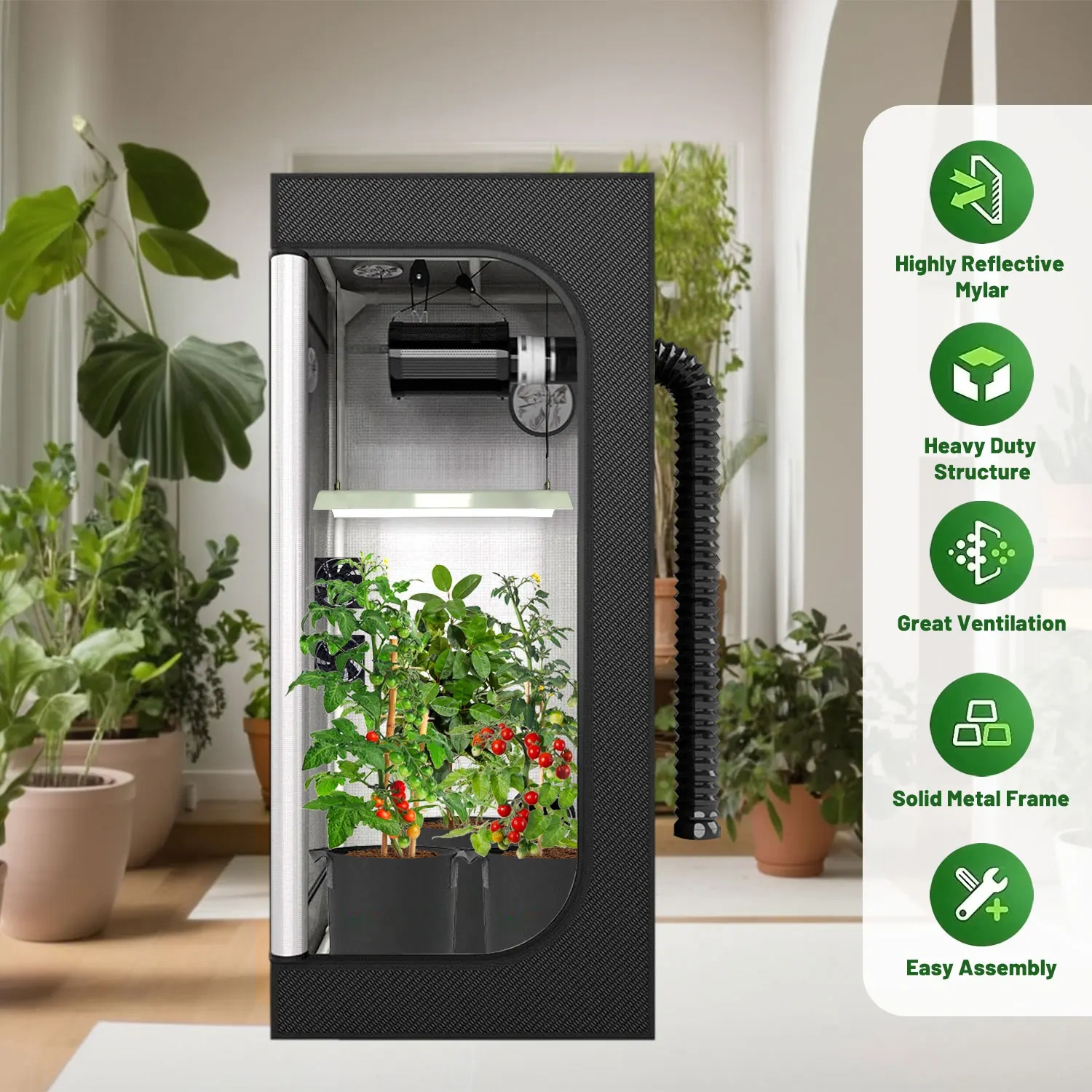

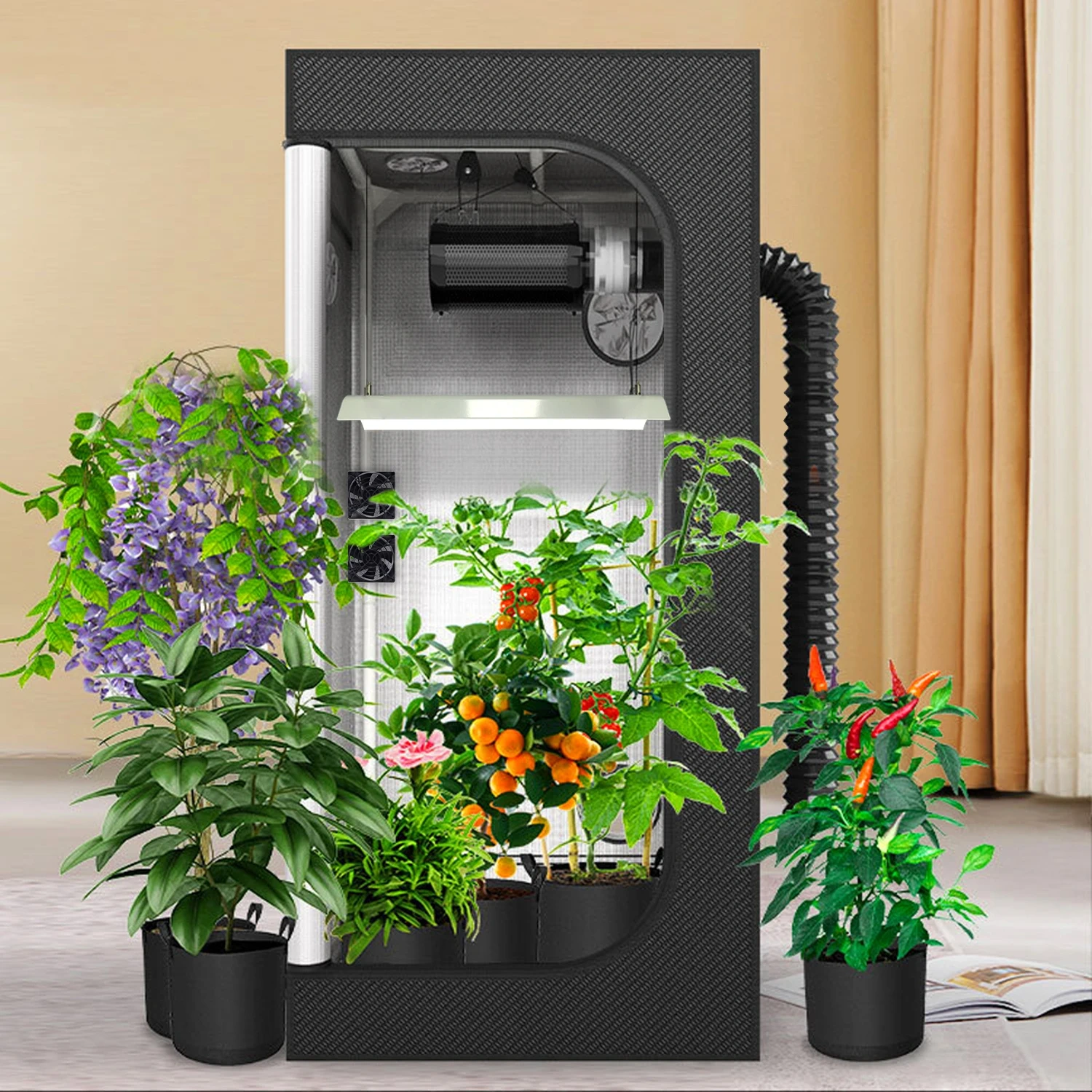

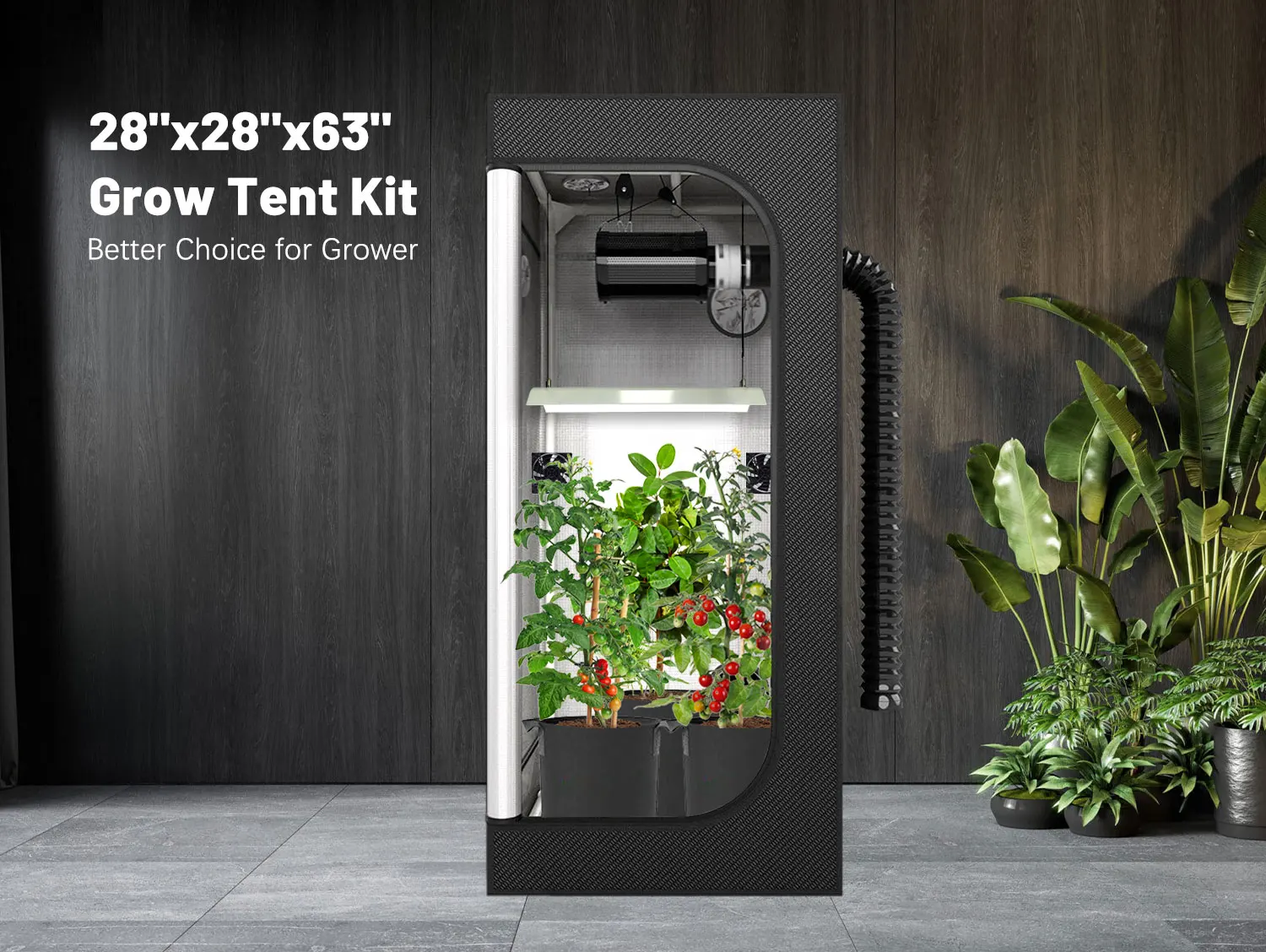

1.6m Grow Tent System |
||
|
Basic parameters |
Model |
|
|
Product description |
Combination kit product: 2FT light panel 20W (1pcs) +700*700*1600mm tent system |
|
|
Length |
light 600*145*53mm |
|
|
Product Dimensions |
700*700*1600mm |
|
| Length*Width*Height (cm) | ||
|
material |
LED lampshade: off-white iron shell, nano reflective block |
|
|
Shelf bearing |
25 Kg |
|
|
Power |
20W |
|
|
Rated Voltage （V） |
DC24V，adapterAC100-240V |
|
|
Work frequency (Hz) |
50/60 Hz |
|
|
Functional testing |
Luminous flux (Lumens) |
2748 lm |
|
Luminous Efficacy ( lm/W ) |
141.2 lm/W |
|
|
PPF (umol/s) |
39.49 umol/s |
|
|
PPE ( umol/J ) |
2.028 umol/s/W |
|
|
Other parameters |
Led Chip |
Samsung 2835 |
|
IP Rating |
/ |
|
|
Beam angle |
120° |
|
|
Environment |
- 20℃ — 40℃ |
|
|
Colour Temp |
6400K |
|
|
Life(h) |
＞50000H |
|
|
Warranty |
3 years |
|
|
Serial quantity |
1pcs |
|
|

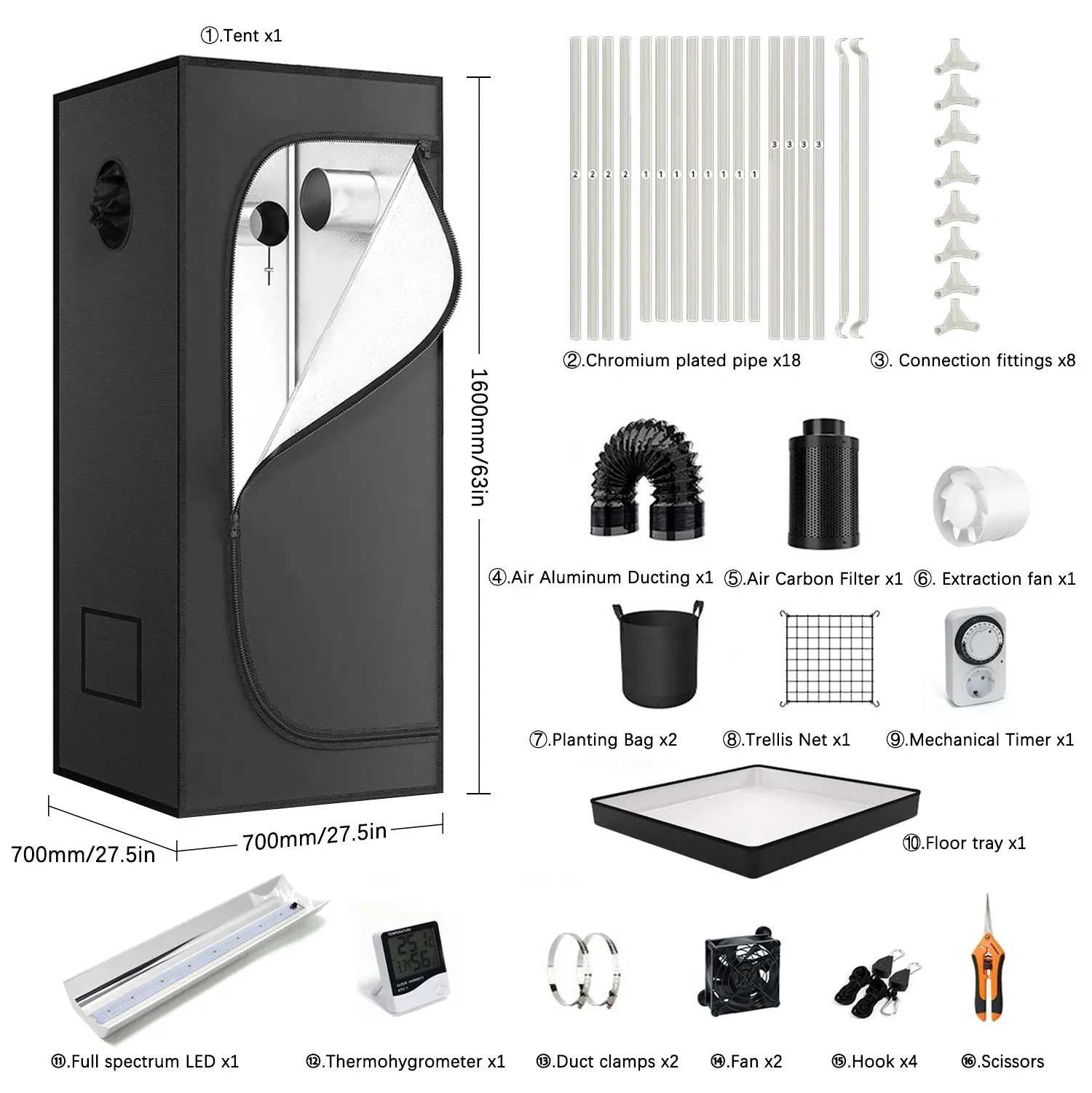

Accessories |
Tent x1 |

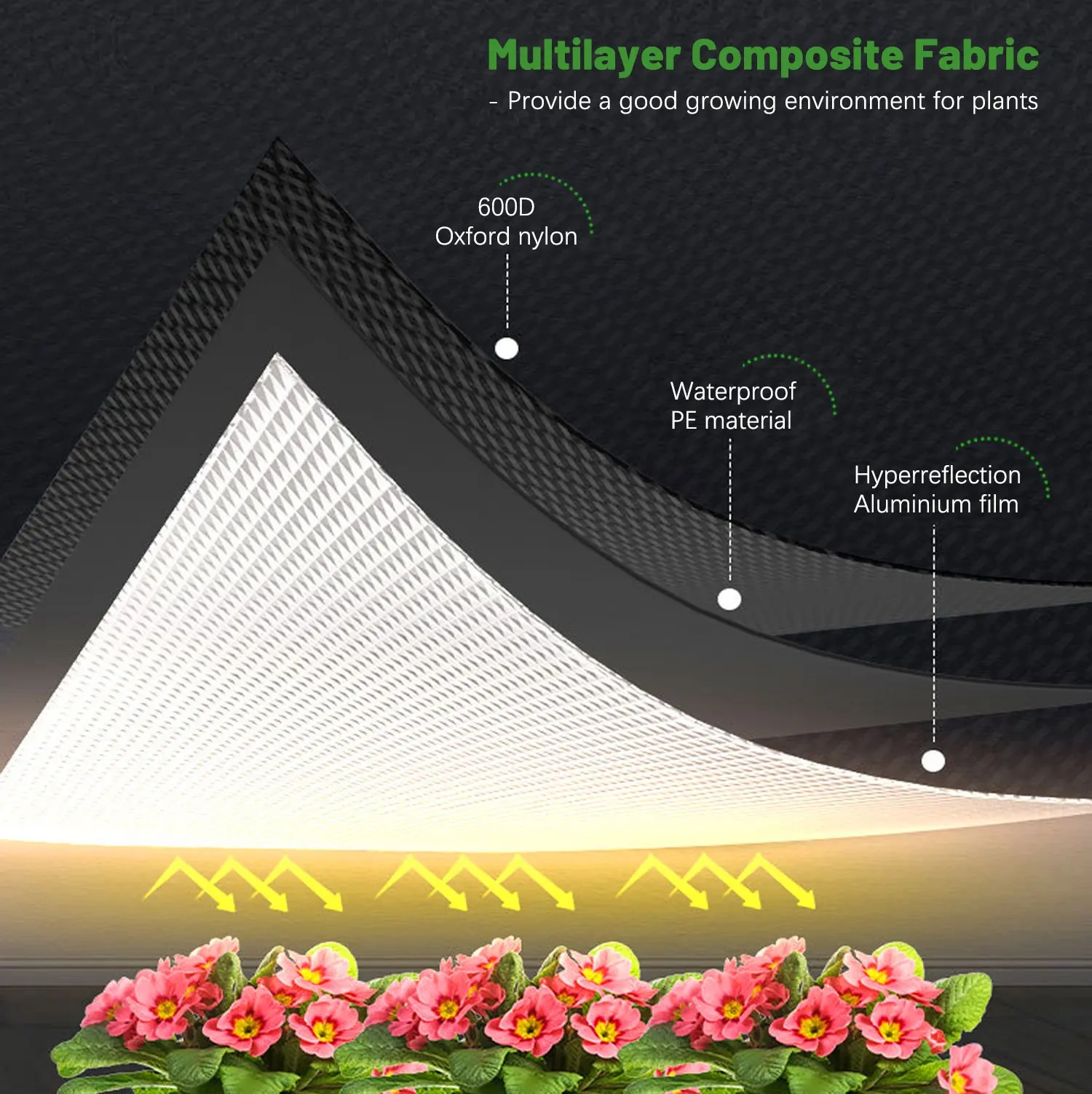

Black outside and white inside aluminum film composite cloth + 600D Oxford cloth + high reflective silver polyester film |
| 700*700*1600mm | ||
|

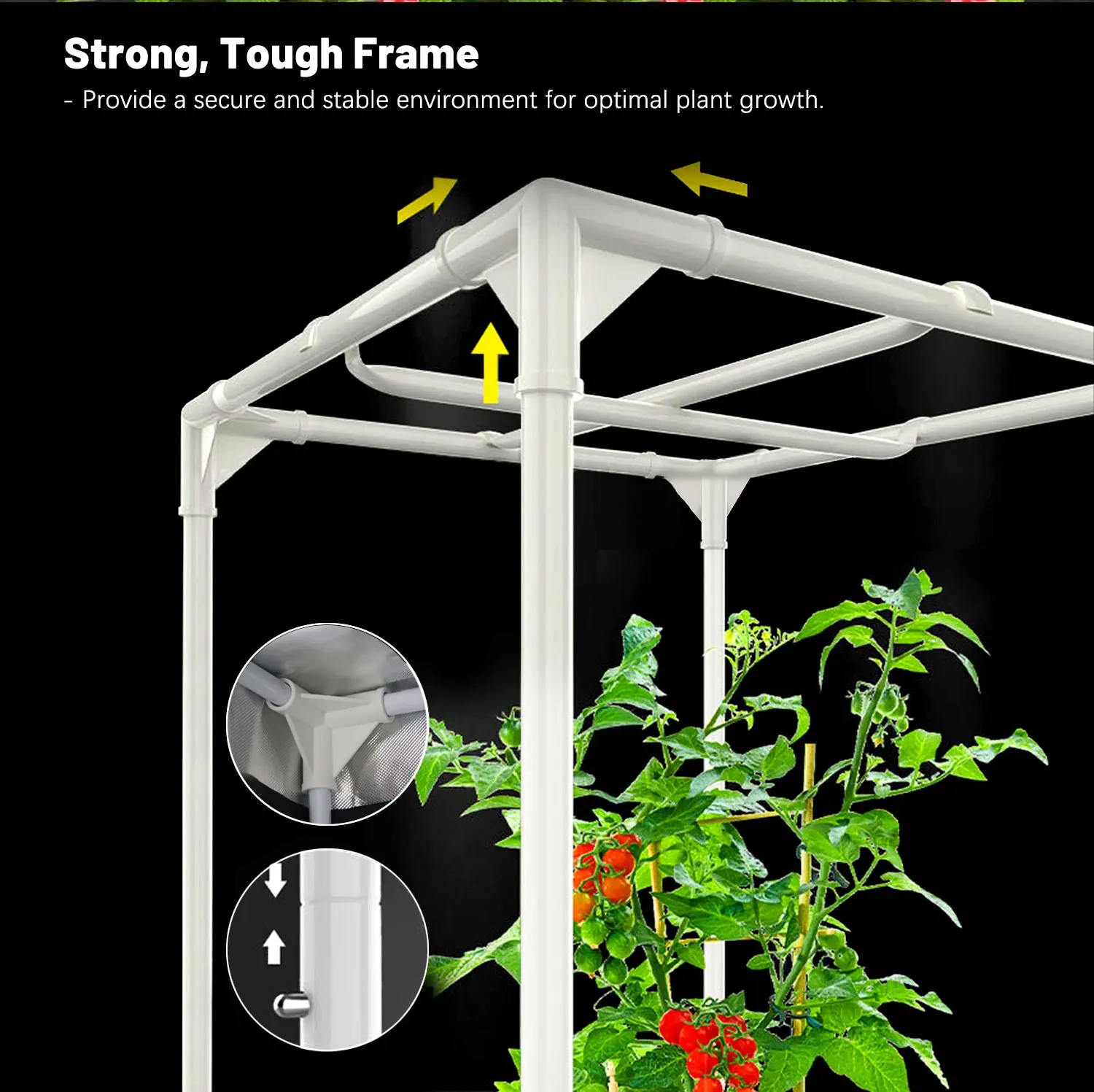

Chromium plated pipe x18 |
White coated metal iron pipe |
|
|
Connection fittings x8 |
White PC connection accessories |
|
|

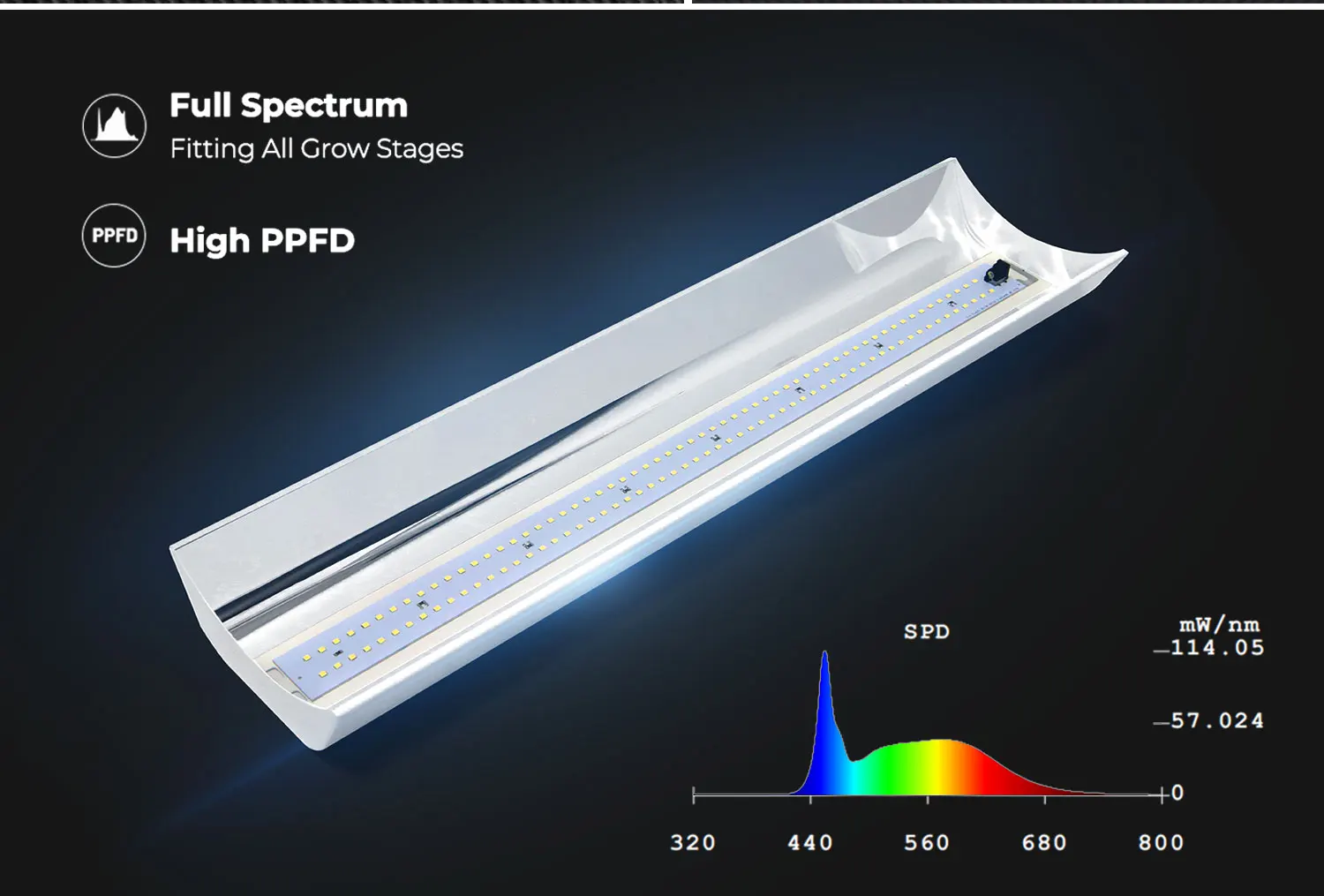

Full spectrum LED x1 |
White 600*145*53mm 20W full spectrum LED light |
|
|
Hook x4 |
Black 2M 1/8" lifting suspension pulley rope, wire diameter 4mm |
|
|
Extraction fan x1 |
4" white 5W fan, air flow 130m³/h (plug voltage available in US 110V/EU 220V) |
|
|
Air Aluminum Ducting x1 |
4" black venting foil hose |
|
|
Duct clamps x2 |
304 stainless steel 12mm width cross clamp 91-114mm |
|
|
Air Carbon Filter x1 |
4" black activated carbon air filter, diameter 4-14 inches, height 50-1500mm |
|
|
Mechanical Timer x1 |
Mechanical cycle electronic timer switch (plug voltage is available in US 110V/EU 220V) |
|
|
Thermohygrometer x1 |
Large screen digital display indoor electronic thermometer and hygrometer |
|
|
Planting Bag x2 |
Black 5 Gallon Non-Woven Grow Bag |
|
|

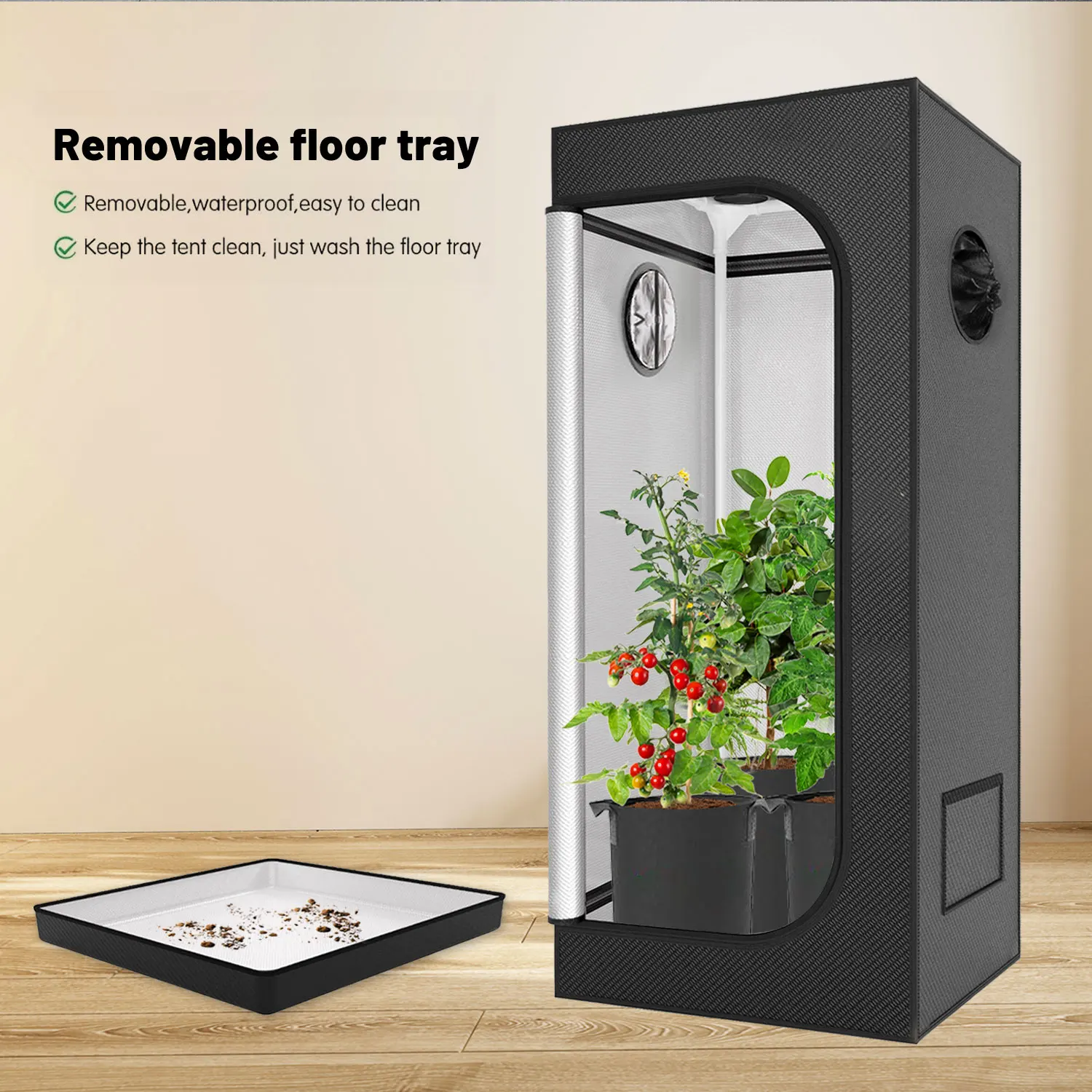

Floor tray x1 |
700X700X100mm Aluminum Film Composite Fabric Tent Floor Tray |
|
|
Scissors x1 |
Length 167mm 3Cr13 steel + PP + TPR gardening flower pruning shears |
|
|
Plant mesh elastic mesh x1 |
Size 400X400mm, 16 grids of uniform elastic mesh |
|
